10.2.  Blinds

Revision History
Revision $Revision: 1639 $ 2006-12-04 j.h

10.2.1.  Overview

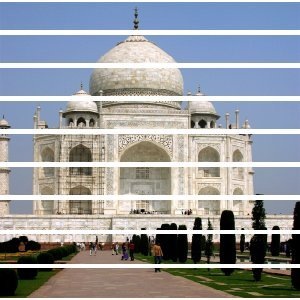

Figure 16.132.  Applying example for the Blinds filter

Applying example for the Blinds filter
Applying example for the Blinds filter

You can find this filter through FiltersDistortBlinds.

It generates a blind effect with horizontal or vertical battens. You can lift or close these battens, but not lift the whole blind up.

10.2.2.  Options

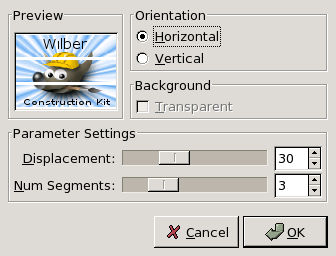

Figure 16.133.  Blinds” filter options

Blinds filter options

Preview

All your setting changes will appear in the Preview without affecting the image until you click on OK.

Orientation

Allows you to decide whether battens will be horizontal or vertical.

Background

The batten color is that of the Toolbox Background. To be able to use the Transparent option, your image must have an Alpha channel.

Parameter Settings

Displacement: Slider and input box allow to wide battens giving the impression they are closing, or to narrow them, giving the impression they are opening.

Num Segments: It's the number of battens. Note that Displacement must be about 50 to have all gradations of this number.
