11.5.  GIMPressionist

Revision History
Revision $Revision: 1738 $ 2006-10-19 j.h

11.5.1.  Overview

Figure 16.159.  The same image, before and after applying GIMPressionist

The same image, before and after applying GIMPressionist
The same image, before and after applying GIMPressionist

You can find this filter via the image menu under FiltersArtisticGIMPressionist

It's the king of Artistic filters. It can do what Cubism and Apply Canvas do and much more. It gives your image the look of a painting. All is going as if your image was painted again on a paper and with a brush you'd have choosen. It works on the active layer or selection.

11.5.2.  Parameter Settings

Preview

All your setting changes will appear in the Preview without affecting the image until you click on OK. The Update button refreshes the preview window (it is not automatic, Gimpressionist has so much work to do!), and the Reset button reverts to the original image.

Presets

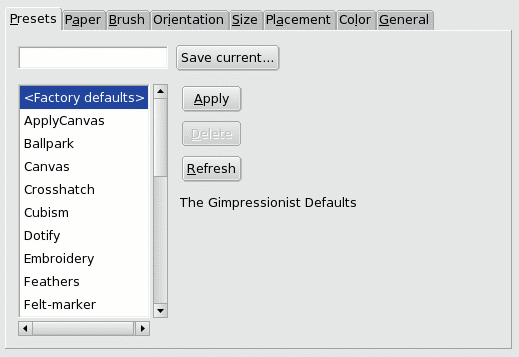

Figure 16.160.  Presets” tab options

Presets tab options

GIMPressionist has a lot of parameters. When combined, they give an astronomical number of possibilities. So, it is important, when an interesting preset has been found, to save it and also to send it to the plugin author if exceptional. Per contra, the intricacy of all these parameters makes difficult understanding and foreseeing how each one works.

  • Save Current: Save current parameters. You can give a name in the input box on the left and a short description in the dialog that appear.

  • Apply: Load the parameters of the selected preset in the list.

  • Delete: Delete the selected preset. You can delete only the presets you have created.

  • Refresh: Update the preset list.

Paper tab

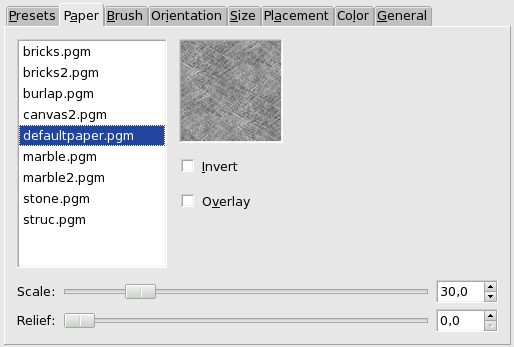

Figure 16.161.  Paper” tab options

Paper tab options

This tab concerns the texture of the canvas your image will be painted on. You have a list of textures and a Preview for the selected texture. A description is displayed on the right for every texture when selected.

Invert

Inverts the paper texture: what was a hollow turns to a bump and vice-versa.

Overlay

Apply the paper as it, without embossing it. It looks like if a transparent paper has been overlayed on the image.

Scale

Specifies the scale of the texture (in % of the original file): controls the graininess of the texture.

Relief

Specifies the amount of embossing to apply (3-150).

Brush tab

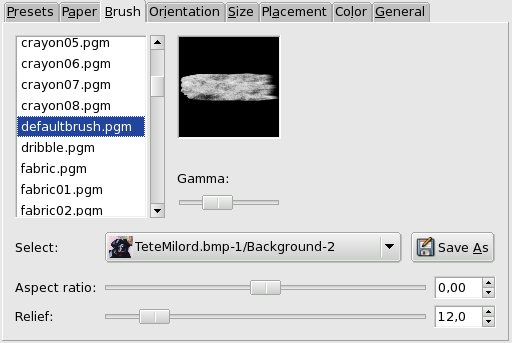

Figure 16.162.  Brush” tab options

Brush tab options

"Brush" is a general term for any material used to paint. A list of brushes is available with a Preview for the selected one.

Gamma

Changes the gamma (luminosity) of the selected brush. The gamma correction brightens or darkens midtones.

Select

You can also use a brush pattern you have created by selecting its image (arrow button on the Select line). This image must be on your screen before you launch the filter to be taken in account. Of course, don't use big images.

If your image has several layers, they also will be displayed in the Select list and can be used as a brush. When selected, the layer appears in the brush preview and the normal brush is deselected.

The Save as button allows you to save the selected brush.

Aspect ratio

Specifies the brush proportions, height (0 -1) and width (0 +1).

Relief

Specifies the amount of paint used for each stroke. This may evoke painting with a palette knife.

Orientation tab

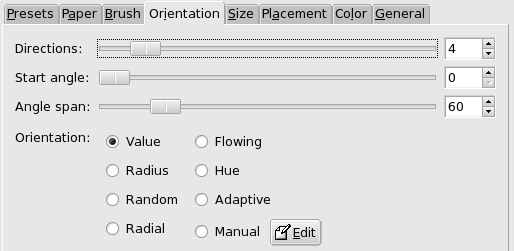

Figure 16.163.  Orientation” tab options

Orientation tab options

This tab allows to set the orientation of the brush strokes. A painter is not obliged to go over with the same paintbrush angle. To perform some effects, he can vary their orientation.

Directions

With this option, you can set how many times the brush will pass through a same place, with each time a different direction, resulting in a more and more thick paint.

Start Angle

Specifies the general direction of the strokes, the angle that the angle range will start from. Directions are often choosen to give some movement to the image.

Angle Span

Specifies the angle, the sector, of the stroke "fan".

Orientation

Specifies the direction of the brush strokes.

  • Value: Let the Value (luminosity) of the region determine the direction of the stroke.

  • Radius: The distance from the center of the image determines the direction of the stroke.

  • Random: Select a random direction for each stroke.

  • Radial: Let the direction from the center determine the direction of the stroke.

  • Flowing: Not a direction question here: the strokes follow a "flowing" pattern.

  • Hue: Let the hue of the region determine the direction of the stroke.

  • Adaptive: The brush direction that matches the original image the closest is selected.

  • Manual: The Edit button opens the Edit orientation Map dialog that allows you to set the directions manually.

Size tab

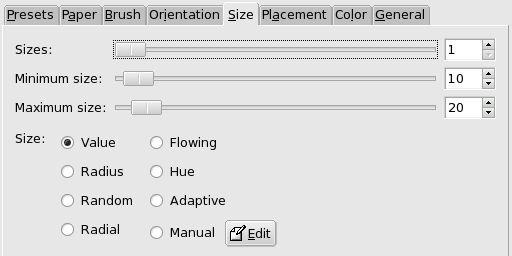

Figure 16.164.  Size” tab options

Size tab options

This tab allows you to set the number of brush sizes that will be used to paint, the limits of variation of these sizes and the criterion used to determine them.

Three Sliders

You can specify how many brush sizes are to be used and their sizes.

  • Sizes: The number of brush sizes to use.

  • Minimum Size and Maximum Size : The brush sizes are between these two values. Greater the size, greater the length and width of strokes.

Sizes

You have there options to specify how the size of strokes will be determined.

  • Value: Let the Value (luminosity) of the region determine the size of the stroke.

  • Radius : The distance from the center of the image determines the size of the stroke.

  • Random : Select a random size for each stroke.

  • Radial : Let the direction from the center determine the size of the stroke.

    Radiale: La direzione a partire dal centro dell'immagine determina la dimensione delle pennellate.

  • Flowing : Not a length question here: the strokes follow a "flowing" pattern.

  • Hue : Let the hue of the region determine the size of the stroke.

  • Adaptive : The brush size that matches the original image the closest is selected.

  • Manual : The Edit button opens the Size Map Editor. That allows you to specify the size of strokes by yourself.

Placement tab

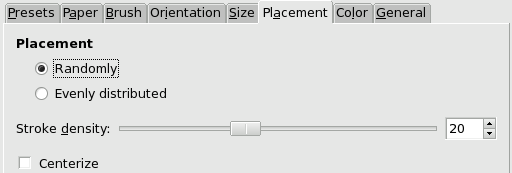

Figure 16.165.  Placement” tab options

Placement tab options

In this tab you can set how strokes will be distributed.

Placement

In the preview of the Orientation Map Editor, all small arrows look like a flow around objects. Inside this flow, strokes may be placed in two different ways:

  • Randomly: Places strokes ramdomly. This produces a more realistic paint.

  • Evenly: Strokes are evenly distributed across the image.

Stroke Density

The greater the density the closer the strokes. With a low density, the paper or background may be visible in unstroke areas.

Centerize

Focus brush strokes around center.

Color tab

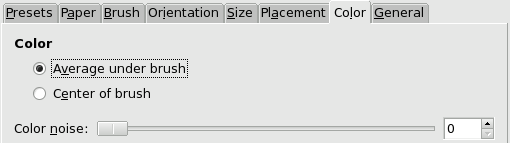

Figure 16.166.  Color” tab options

Color tab options

In this tab, you can set what the stroke color will be.

Color

You can set the stroke color in two ways:

  • Average under brush: Stroke color is computed from the the average of all pixels under the brush.

  • Center of brush: Samples the color from the pixel in the center of the brush.

Color Noise

This slider, and its input box, allow you to introduce noise in the stroke color, that will look less homogenous.

General tab

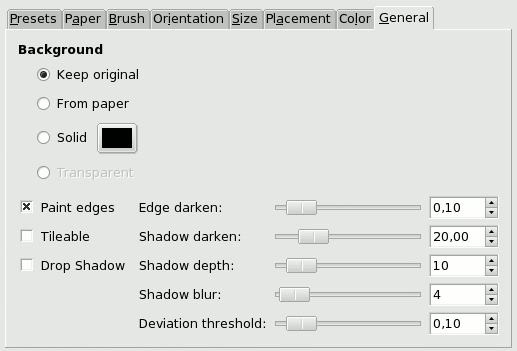

Figure 16.167.  General” tab options

General tab options

In this tab you can set what will be the background and the relief of brush strokes.

Background
  • Keep Original: The original image will be used as a background.

  • From Paper: Copy the texture of the selected paper as a background.

  • Solid: By clicking on the color dwell you can select a solid colored background.

  • Transparent: Use a transparent background. Only the painted strokes will be visible. This option is available only if your image has an Alpha channel.

Paint Edges

If it is disabled, a thin border will not be painted around the outside border of the image.

Tileable

If checked, the resulting image will be seamlessly tileable. The right side will match the left side and the top will match the bottom. This is interesting if your image will be repeatedly used in a Web background.

Drop Shadow

Add a shadow effect to each brush stroke.

Edge Darken

How much to darken the edges of each brush stroke. This increases paint relief or thickness.

Shadow Darken

How much to darken the brush shadow.

Shadow Depth

How far apart from the object the drop shadow should be.

Shadow Blur

How much to blur the drop shadow.

Deviation Threshold

A bail-out value for adaptative selections of brush size.
