13.16.  Sphere Designer

13.16.1.  Overview

Figure 16.259.  The same image, before and after the application of “Sphere Designer” filter.

The same image, before and after the application of Sphere Designer filter.
The same image, before and after the application of Sphere Designer filter.

This filter creates a three dimentional sphere with different textures. It replaces the original image.

13.16.2.  Activating Sphere Designer

You can find this filter through FiltersRenderSphere Designer.

13.16.3.  Options

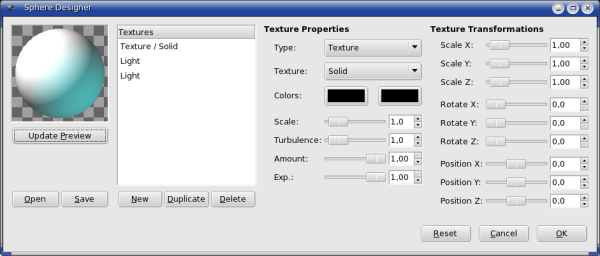

Figure 16.260.  Sphere Designer” filter parameters

Sphere Designer filter parameters

Preview

All your setting changes will appear in the Preview without affecting the image until you click on OK. Note that the preview displays the whole image, even if the final result will concern a selection. Click the button Update Preview to see the result of the current settings.

Textures

Textures: The list of textures applied to the sphere. There textures are applied in the order listed. Each item shows the type and the name of the texture.

New

New: Creates a new texture and adds it to the end of the list. The name and the features of this new texture are the ones which are displayed in the Texture Properties area, but you can change them by operating in this area, provided that your new texture is highlighted.

Duplicate

Duplicate: Copies the selected texture and adds the copy to the end of the list.

Delete

Delete: Deletes the selected texture from the list.

Open/Save

Open/Save: Allows to save current settings or load previously saved settings.

Texture properties
Type

Type: Determines the type of action on the sphere.

  • Texture covers the sphere with a specific pattern.

  • Bumpmap gives some relief to the texture.

  • Light lets you set the parameters of the light shining on the sphere.

Texture

Texture: Determines the pattern used by the texture type. If the texture applies to light then the light is distorted by this texture as if it was going through this texture before falling onto the sphere. If the texture applies to the texture itself, the texture is applied directly to the sphere. The following options are available: “Solid”, “Checker”, “Marble”, “Lizard”, “Phong”, “Noise”, “Wood”, “Spiral” and “Spots”.

Colors

Colors: Sets the two colors to be used for a texture. By pressing the color button a color selection dialog appears.

Scale

Scale: Determines the size of separate elements composing the texture. For example, for the “Checker” texture this parameter determines the size of black and white squares. Value range is from 0 to 10.

Turbulence

Turbulence: Determines the degree of texture distortion before applying the texture to the sphere. Value range is from 0 to 10. With values of up to 1.0 you can still make out the undistorted patterns; beyond that the texture gradually turns into noise.

Amount

Amount: Determines the degree of influence the texture has on the final result. Value range is from 0 to 1. With the value of 0 the texture does not affect the result.

Exponent

Exponent: With the Wood texture, this options gives an aspect of venetian blind, more or less open.

Texture Transformations
Scale X/Y/Z

Scale X/Y/Z: Determines the degree of streching/compression of the texture on the sphere along the three directions. The value range is from 0 to 10.

Rotate X/Y/Z

Rotate X/Y/Z: Determines the amount of a turn of the texture on the sphere around the three axes. The value range is from 0 to 360.

Position X/Y/Z

Position X/Y/Z: Determines the position of the texture relative to the sphere. When type is Light, this parameter refers to the position of the light floodlighting the sphere.

Reset

Reset: Sets all parameters to the default values.
